TCP/IP Networking

This chapter includes:

Overview of TCP/IP

The term TCP/IP implies two distinct protocols: TCP and IP. Since these protocols have been used so commonly together, TCP/IP has become a standard terminology in today's Internet. Essentially, TCP/IP refers to network communications where the TCP transport is used to deliver data across IP networks.

This chapter provides information on setting up TCP/IP networking on a Neutrino network. It also provides troubleshooting and other relevant details from a system-administration point of view. A Neutrino-based TCP/IP network can access resources located on any other system that supports TCP/IP.

Clients and servers

There are two types of TCP/IP hosts: clients and servers. A client requests TCP/IP service; a server provides it. In planning your network, you must decide which hosts will be servers and which will be clients.

For example, if you want to telnet from a machine, you need to set it up as a client; if you want to telnet to a machine, it has to be a server.

Hosts and gateways

In TCP/IP terminology, we always refer to network-accessible computers as hosts or gateways.

Host
A node running TCP/IP that doesn't forward IP packets to other to other TCP/IP networks; a host usually has a single interface (network card) and is the destination or source of TCP/IP packets.
Gateway
A node running TCP/IP that forwards IP packets to other TCP/IP networks, as determined by its routing table. These systems have two or more network interfaces. If a TCP/IP host has Internet access, there must be a gateway located on its network.

Note: In order to use TCP/IP, you need an IP address, and you also need the IP address of the host you wish to communicate with. You typically refer to the remote host by using a textual name that's resolved into an IP address by using a nameserver.

Nameservers

A nameserver is a database that contains the names and IP addresses of hosts. You normally access a TCP/IP or Internet host with a textual name (e.g. www.qnx.com) and use some mechanism to translate the name into an IP address (e.g. 209.226.137.1).

The simplest way to do this mapping is to use a table in the /etc/hosts file. This works well for small to medium networks; if you have something a bit more complicated than a small internal network with a few hosts, you need a nameserver (e.g. for an ISP connection to the Internet).

When you use a name to connect to a TCP/IP host, the nameserver is asked for the corresponding IP address, and the connection is then made to that IP address. You can use either:

You can use phlip, the Photon TCP/IP and dialup configuration tool, to configure the network and specify nameservers; phlip sets configuration string _CS_RESOLVE. You can also set _CS_RESOLVE manually. This string, if it exists, is always searched instead of /etc/resolv.conf.

For more information on finding TCP/IP hostnames and nameservers, see /etc/hosts and /etc/resolv.conf in the Utilities Reference.

Routing

Routing determines how to get a packet to its intended destination. The general categories of routing are:

Minimal routing
You will only be communicating with hosts on your own network. For example, you're isolated on your own network.
Static routing
If you're on a network with a small (and static over time) number of gateways, then you can use the route command to manually manipulate the TCP/IP routing tables and leave them that way.

This is a very common configuration. If a host has access to the Internet, it likely added one static route called a default route. This route directs all the TCP/IP packets from your host that aren't destined for a host on your local network to a gateway that provides access to the Internet.

Dynamic routing
If you're on a network with more than one possible route to the same destination on your network, you might need to use dynamic routing. This relies on routing protocols to distribute information about the changing state of the network. If you need to react to these changes, run routed, which implements the Routing Information Protocol (RIP) and RIPv2.

There's often confusion between routing and routing protocols. The TCP/IP stack determines the routing by using routing tables; routing protocols let those tables change.

Software components for TCP/IP networking

To use TCP/IP, you need the following software components:

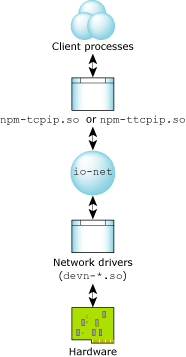

TCP/IP components


Components of TCP/IP in Neutrino.


npm-tcpip.so or npm-ttcpip.so
Shared objects that implement the full and tiny TCP/IP stacks.
io-net
Manager that provides support for dynamically loaded networking modules.
Network drivers (devn-*)
Managers that form an interface with the hardware.

Choosing the right stack configuration

Neutrino supports TCP/IP with two different stacks:

The tiny stack is meant for resource-constrained client applications where it isn't necessary to have all TCP/IP services present; for a list of the services not covered in the tiny stack, see the limitations listed in the Utilities Reference.

The way that you set configuration parameters depends on which stack you use:

These methods are described below. For either stack, if you're using the Dynamic Host Configuration Protocol (DHCP), you can use dhcp.client to set the configuration parameters for you as provided by the DHCP server.

Tiny stack (npm-ttcpip.so)

Use the tiny stack when you need to conserve resources. It supports many, but not all, of the functions found in the full TCP/IP stack; see npm-ttcpip.so in the Utilities Reference for a list of its limitations.

When you start the tiny stack, use the command-line options to set the configuration parameters. For example:

io-net -dne2000 -pttcpip if=en0:10.100,default=10.1

To see how you've configured your system or to view the current network connections when using the tiny stack, read the /proc/ipstats file, like this:

cat /proc/ipstats

You'll see something like this:

Ttcpip Jun 15 2000 22:36:01

verbosity level 0
ip checksum errors: 0
udp checksum errors: 0
tcp checksum errors: 0

packets sent: 0
packets received: 0

en0 : addr 10.0.0.100    netmask 255.0.0.0    down
lo0 : addr 127.0.0.1     netmask 255.0.0.0    up

DST: 10.0.0.0      NETMASK: 255.0.0.0     GATEWAY: en0
DST: 127.0.0.0     NETMASK: 255.0.0.0     GATEWAY: lo0
DST: 0.0.0.0       NETMASK: 0.0.0.0       GATEWAY: 10.0.0.1

Here you can see that the interface has been configured to 10.0.0.100 and the default route has been set to 10.0.0.1.

Full TCP/IP stack (npm-tcpip.so)

The full TCP/IP stack, npm-tcpip.so, is based on the BSD TCP/IP stack, and it supports similar features. If you aren't using phlip (the Photon TCP/IP and dialup configuration tool) to configure the full stack, you have to use the ifconfig and route utilities as described below -- you can't use command-line options as you would for the tiny stack.

To start the full stack, load the TCP/IP shared object into io-net. For example:

io-net -dne2000 -ptcpip

To configure an interface with an IP address, you must use the ifconfig utility. To configure your network interface with an IP address of 10.0.0.100, you would use the following command:

ifconfig en0 10.0.0.100

If you also want to specify your gateway, use the route command:

route add default 10.0.0.1

This configures the gateway host as 10.0.0.1.

If you then want to view your network configuration, use the netstat command (netstat -in displays information about the network interfaces):

Name Mtu    Network   Address           Ipkts Ierrs Opkts Oerrs Coll
lo0  32976  <Link>                       0    0     0     0     0
lo0  32976  127       127.0.0.1          0    0     0     0     0
en0  1500   <Link>    00:50:da:c8:61:92 21    0     2     0     0
en0  1500   10        10.0.0.100        21    0     2     0     0

To display information about the routing table in the full stack, use netstat -rn; the resulting display looks like this:

Routing tables

Internet:
Destination Gateway    Flags Refs Use Mtu Interface
default     10.0.0.1   UGS   0    0   -   en0
10          10.0.0.100 U     1    0   -   en0
10.0.0.100  10.0.0.100 UH    0    0   -   lo0
127.0.0.1   127.0.0.1  UH    0    0   -   lo0

The table shows that the default route to the gateway was configured (10.0.0.1).

Running the Internet daemons

If a host is a server, it invokes the appropriate daemon to satisfy a client's requests. A TCP/IP server typically runs the inetd daemon, also known as the Internet super-server. You can start inetd in your machine's rc.local file; see the description of /etc/rc.d/rc.sysinit in the Controlling How Neutrino Starts chapter in this guide.


Caution: Running inetd lets outside users try to connect to your machine and thus is a potential security issue if you don't configure it properly.

The inetd daemon listens for connections on some well-known ports, as defined in /etc/inetd.conf, in the TCP/IP network. On receiving a request, it runs the corresponding server daemon. For example, if a client requests a remote login by invoking rlogin, then inetd starts rlogind (remote login daemon) to satisfy the request. In most instances, responses to client requests are handled this way.

You use the super-server configuration file /etc/inetd.conf to specify the daemons that inetd can start. As shipped in the Neutrino distribution, the file describes all currently shipped Neutrino TCP/IP daemons and some nonstandard pidin services. Unless you want to add or remove daemon definitions, you don't need to modify this file. When it starts, inetd reads its configuration information from this configuration file. It includes these commonly used daemons:

ftpd
File transfer.
rlogind
Remote login.
rftp
Remote file transfer.
rshd
Remote shell.
telnetd
Remote terminal session.
tftpd
DARPA trivial file transfer.

Note:
  • Remember that you shouldn't manually start the daemon processes listed in this file; they expect to be started by inetd.
  • Running rshd or rlogind can open up your machine to the world. Use the /etc/hosts.equiv or ~/.rhosts files (or both) to identify trusted users, but be very careful.

You may also find other resident daemons that can run independently of inetd -- see the Utilities Reference for descriptions:

bootpd
Internet boot protocol server.
dhcpd
Dynamic Host Configuration Protocol daemon.
lpd
Line printer daemon (see Printing).
mrouted
Distance-Vector Multicast Routing Protocol (DVMRP) daemon.
named
Internet domain name server
ntpd
Network Time Protocol daemon.
routed
RIP and RIPv2 routing protocol daemon
rwhod
System status database.
slinger
Tiny HTTP web server.
snmpd
SNMP agent.
nfsd
NFS server.

These daemons listen on their own TCP ports and manage their own transactions. They usually start when the computer boots and then run continuously, although to conserve system resources, you can have inetd start bootpd only when a boot request arrives.

Running multiple instances of the TCP/IP stack

In some situations, you may need to run multiple instances of the TCP/IP stack:

  1. Start the first instance of the TCP/IP stack by invoking io-net as follows:
    io-net -del900 pci=0x0 -ptcpip
  2. Start the second instance of the TCP/IP stack by invoking io-net as follows:
    io-net -i1 -del900 pci=0x1 -ptcpip prefix=/sock2

    You can get the PCI index of your NIC cards by using the pci -vvv command. If you're using different types of NIC cards, you don't have to specify the PCI index.

The -i option in the second instance of TCP/IP tells io-net to register itself as /dev/io-net1. The prefix option to npm-tcpip.so causes the second stack to be registered as /sock2/dev/socket instead of the default, /dev/socket. TCP/IP applications that wish to use the second stack must specify the environment variable SOCK. For example:

SOCK=/sock2 telnet 10.59

or:

SOCK=/sock2 netstat -in

or:

SOCK=/sock2 ifconfig en0 192.168.2.10

If you don't specify SOCK, the command uses the first TCP/IP stack.

Dynamically assigned TCP/IP parameters

When you add a host to the network or connect your host to the Internet, you need to assign an IP address to your host and set some other configuration parameters. There are a few common mechanisms for doing this:

Along with your IP address, the servers implementing these protocols can supply your gateway, netmask, nameservers, and even your printer in the case of a corporate network. Users don't need to manually configure their host to use the network.

Neutrino also implements another autoconfiguration protocol called AutoIP (zeroconf IETF draft). This autoconfiguration protocol is used to assign link-local IP addresses to hosts in a small network. It uses a peer-negotiation scheme to determine the link-local IP address to use instead of relying on a central server.

Using PPPoE

PPPoE stands for Point-to-Point Protocol over Ethernet. It's a method of encapsulating your data for transmission over a bridged Ethernet topology.

PPPoE is a specification for connecting users on an Ethernet network to the Internet through a broadband connection, such as a single DSL line, wireless device, or cable modem. Using PPPoE and a broadband modem, LAN users can gain individual authenticated access to high-speed data networks.

By combining Ethernet and the Point-to-Point Protocol (PPP), PPPoE provides an efficient way to create a separate connection to a remote server for each user. Access, billing, and choice of service are managed on a per-user basis, rather than a per-site basis. It has the advantage that neither the telephone company nor the Internet service provider (ISP) needs to provide any special support.

Unlike dialup connections, DSL and cable modem connections are always on. Since a number of different users are sharing the same physical connection to the remote service provider, a way is needed to keep track of which user traffic should go to where, and which user should be billed. PPPoE lets each user-remote site session learn each other's network addresses (during an initial exchange called discovery). Once a session is established between an individual user and the remote site (for example, an Internet service provider), the session can be monitored for billing purposes. Many apartment houses, hotels, and corporations are now providing shared Internet access over DSL lines using Ethernet and PPPoE.

A PPPoE connection is composed of a client and a server. Both the client and server work over any Ethernet-like interface. It's used to hand out IP addresses to the clients, based on the user (and workstation if desired), as opposed to workstation-only authentication. The PPPoE server creates a point-to-point connection for each client.

Establishing a PPPoE session

Use the pppoed daemon to negotiate a PPPoE session. The npm-pppoe.so shared object provides PPP-to-Ethernet services. Start io-net with this shared object. For example:

io-net -del900 -pttcpip -ppppmgr -ppppoe

Then, make a session to any server using the file /etc/ppp/pppoe-up to start pppd:

pppoed

Make a session to the server with a name of PPPOE_GATEWAY:

pppoed name=PPPOE_GATEWAY

Once the PPPoE session is established, pppoed uses pppd to create a point-to-point connection over the PPPoE session. The pppd daemon gets a local TCP/IP configuration from the server (ISP).

Starting a point-to-point connection over PPPoE session

The pppoed daemon needs pppd to establish TCP/IP point-to-point links. When starting pppd, there are a few pppd options that are specific to running pppd over a pppoe session. Here's an example of /etc/ppp/pppoe-up:

#!/bin/sh
pppd debug /dev/io-net/ppp_en -ac -pc -detach defaultroute \
 require-ns mtu 1492 name username

The required pppd options for use with pppoed are:

/dev/io-net/ppp_en
The device that you want npm-pppoe.so to create.
-ac -pc
Required options that disable any packet compression.
-detach
Prevent pppd from becoming a daemon. This lets pppoed know when the pppd session is finished. You can omit this option if you specify the pppoed option scriptdetach.
mtu 1492
Set the interface MTU to the supported size for PPPOE. This is the Ethernet MTU minus the overhead of PPPOE encapsulation.

Note: If pppoed has problems connecting to certain sites on the Internet, see PPPOE and Path MTU Discovery in the Neutrino technotes.

Using DHCP

A TCP/IP host uses the DHCP (Dynamic Host Configuration Protocol) to obtain its configuration parameters (IP address, gateway, nameservers, and so on) from a DHCP server that contains the configuration parameters of all the hosts on the network.

The Neutrino DHCP client, dhcp.client, obtains these parameters and configures your host for you to use the Internet or local network.

If your DHCP server supplies options (configuration parameters) that dhcp.client doesn't know how to apply, dhcp.client passes them to a script that it executes. You can use this script to apply any options you want to use outside of those that dhcp.client sets for you. For more information, see the entry for dhcp.client in the Utilities Reference.

Using AutoIP

AutoIP is a module that you must mount into io-net. It is used for quick configuration of hosts on a small network. AutoIP assigns a link-local IP address from the 169.254/16 network to its interface if no other host is using this address. The advantage of using AutoIP is that you don't need a central configuration server. The hosts negotiate among themselves which IP addresses are free to use, and monitor for conflicts.

It's common to have a host employ both DHCP and AutoIP at the same time. When the host is first connected to the network, it doesn't know if a DHCP server is present or not. If you start dhcp.client with the -a option (apply IP address as an alias), then both a link-local IP address and DHCP IP address can be assigned to your interface at the same time. If the DHCP server isn't present, dhcp.client times out, leaving the link-local IP address active. If a DHCP server becomes available later, dhcp.client can be restarted and a DHCP IP address applied without interfering with any TCP/IP connections currently using the link-local IP address.

Having both a DHCP-assigned address and a link-local address active at the same time lets you communicate with hosts that have link-local IP addresses and those that have regular IP addresses. For more information, see nfm-autoip.so and dhcp.client in the Utilities Reference.

Using the SRI SNMP suite for Neutrino

The Simple Network Management Protocol (SNMP) is an application-layer protocol that uses the TCP/IP protocol suite and facilitates the exchange of management information between network devices. SNMP enables network administrators to manage network performance, find and solve network problems, and plan for network growth.

The SRI SNMP Suite for Neutrino consists primarily of ports of the EMANATE and EMANATE/Lite technologies developed by SNMP Research International (SRI). EMANATE/Lite is a statically extensible agent; the EMANATE agent can be extended dynamically. Both agents support SNMP V1, V2, and V3, and include development kits for developers to extend the agents.

Troubleshooting

If you're having trouble with your TCP/IP network (i.e. you can't send packets over the network), you need to use several utilities for troubleshooting. These utilities query hosts, servers, and the gateways to fetch diagnostic information to locate faults. Some of the typical queries are:

Are io-net and the drivers running?

As mentioned before, io-net is the framework used to connect drivers and protocols. In order to troubleshoot this, use the pidin command:

$ pidin -P io-net mem

Look for the TCP/IP shared object in the output:

  pid tid name               prio STATE           code  data         stack
77839   1 sbin/io-net         10o SIGWAITINFO       56K  384K  8192(516K)*
77839   2 sbin/io-net         10o RECEIVE           56K  384K   4096(68K)
77839   3 sbin/io-net         10o RECEIVE           56K  384K   4096(68K)
77839   4 sbin/io-net         10o RECEIVE           56K  384K   4096(68K)
77839   5 sbin/io-net         10o RECEIVE           56K  384K   4096(68K)
77839   6 sbin/io-net         20o RECEIVE           56K  384K  4096(132K)
77839   7 sbin/io-net         21r RECEIVE           56K  384K  4096(132K)
         ldqnx.so.2         @b0300000             300K   16K
         npm-tcpip.so       @b8200000             584K  140K
         devn-el900.so      @b82b5000              56K  8192

You should see the npm-tcpip.so shared object and another for a network driver (in this case, devn-el900.so).


Note: If you see npm-ttcpip.so instead of npm-tcpip.so in the above output, you're using the tiny TCP/IP stack.

Is the TCP/IP protocol stack or Ethernet driver installed?

In order to ascertain the above, use the following command:

$ ls /dev/io-net

Ideally, you should see the following output:

en0        ip0        ip_en      ipv6_en

The en0 entry represents the first (and only) Ethernet driver; ip_en and ipv6_en represent the TCP/IP protocol stack, which was started by mounting npm-tcpip.so, which is actually a shared object that io-net loads.

What is the nameserver information?

Use the following command to get the nameserver information:

getconf _CS_RESOLVE

If you aren't using the configuration string, type:

cat /etc/resolv.conf

How do I map hostnames to IP addresses?

The /etc/hosts file contains information regarding the known hosts on the network. For each host, a single line should be present with the following information:

internet_address  official_host_name  aliases

Display this file by using the following command:

cat /etc/hosts

How do I get the network status?

If you're using the full TCP/IP stack, use the following netstat commands to get the network status:

netstat -in
List the interfaces, including the MAC and IP addresses that they've been configured with.
netstat -rn
Display the network routing tables that determine how the stack can reach another host. If there's no route to another host, you get a "no route to host" error.
netstat -an
List information about TCP/IP connections to or from your system. This includes the state of the connections or the amount of data pending on the connections. It also provides the IP addresses and ports of the local and remote ends of the connections.

For the tiny TCP/IP stack, you have to use the following command as it doesn't support netstat:

$ cat /proc/ipstats

For more information about netstat, see the Utilities Reference.

How do I make sure I'm connected to other hosts?

Use the ping utility to determine if you're connected to other hosts. For example:

ping isp.com

On success, ping displays something like this:

PING isp.com (10.0.0.1): 56 data bytes
64 bytes from 10.0.0.1: icmp_seq=0 ttl=255 time=0 ms
64 bytes from 10.0.0.1: icmp_seq=1 ttl=255 time=0 ms
64 bytes from 10.0.0.1: icmp_seq=2 ttl=255 time=0 ms
64 bytes from 10.0.0.1: icmp_seq=3 ttl=255 time=0 ms
64 bytes from 10.0.0.1: icmp_seq=4 ttl=255 time=0 ms
64 bytes from 10.0.0.1: icmp_seq=5 ttl=255 time=0 ms
64 bytes from 10.0.0.1: icmp_seq=6 ttl=255 time=0 ms

This report continues until you terminate ping, for example, by pressing Ctrl-C.

How do I display information about an interface controller?

Use the nicinfo command:

/usr/sbin/nicinfo device

Note: If you aren't logged in as root, you have to specify the full path to nicinfo.

This utility displays information about the given network interface connection, or /dev/io-net/en0 if you don't specify one. The information includes the number of packets transmitted and received, collisions, and other errors, as follows:

3COM (90xC) 10BASE-T/100BASE-TX Ethernet Controller
  Physical Node ID ................. 000103 E8433F
  Current Physical Node ID ......... 000103 E8433F
  Media Rate ....................... 10.00 Mb/s half-duplex UTP
  MTU .............................. 1514
  Lan .............................. 0
  I/O Port Range ................... 0xA800 -> 0xA87F
  Hardware Interrupt ............... 0x7
  Promiscuous ...................... Disabled
  Multicast ........................ Enabled

  Total Packets Txd OK ............. 1585370
  Total Packets Txd Bad ............ 9
  Total Packets Rxd OK ............. 11492102
  Total Rx Errors .................. 0

  Total Bytes Txd .................. 102023380
  Total Bytes Rxd .................. 2252658488

  Tx Collision Errors .............. 39598
  Tx Collisions Errors (aborted) ... 0
  Carrier Sense Lost on Tx ......... 0
  FIFO Underruns During Tx ......... 0
  Tx deferred ...................... 99673
  Out of Window Collisions ......... 0
  FIFO Overruns During Rx .......... 0
  Alignment errors ................. 0
  CRC errors ....................... 0.

[Previous] [Contents] [Index] [Next]
